What's better than a single LED? Lots of LEDs! A fun way to make a small display is to use an or a . Matrices like these are 'multiplexed' - so to control 64 LEDs you need 16 pins. That's a lot of pins, and there are driver chips like the that can control a matrix for you but there's a lot of wiring to set up and they take up a ton of space. Here at Adafruit, we feel your pain! After all, wouldn't it be awesome if you could control a matrix without tons of wiring? That's where these adorable LED matrix backpacks come in. We have them in two flavours - a and a 4-digit 0.56" 7-segment. They work perfectly with the matrices we stock in the Adafruit shop and make adding a bright little display trivial.

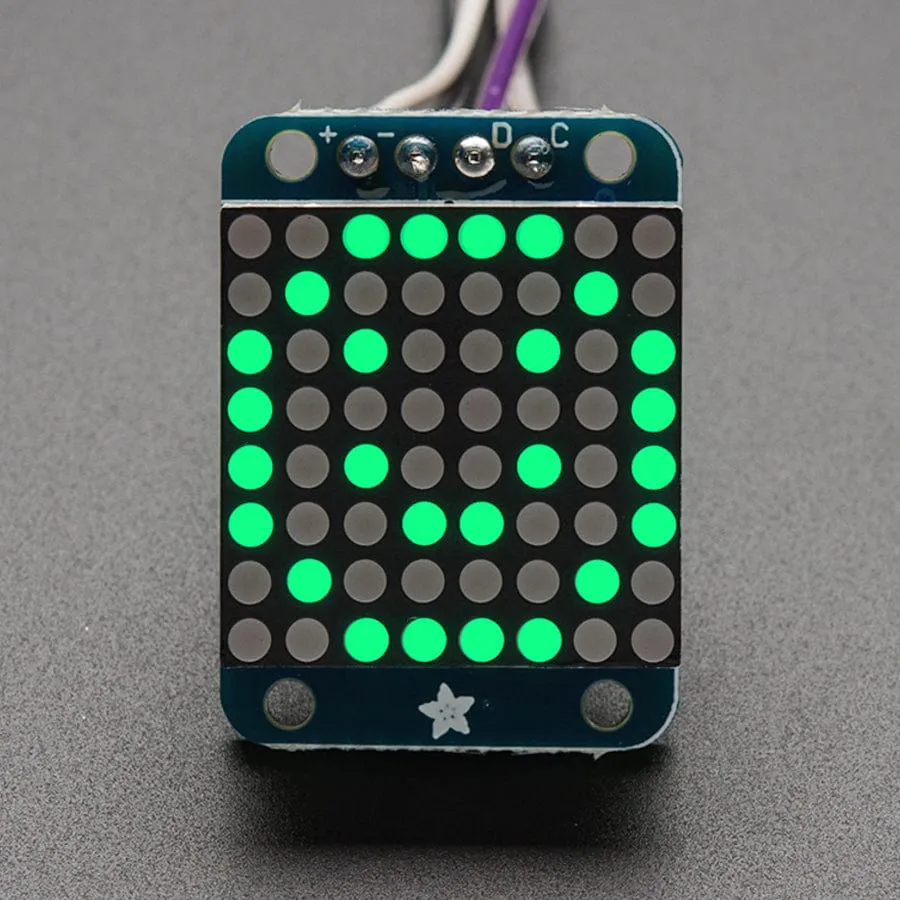

The matrices use a driver chip that does all the heavy lifting for you: They have a built in clock so they multiplex the display. They use constant-current drivers for ultra-bright, consistent colour (the images above are photographed at the dimmest setting to avoid overloading our camera!), and 1/16 step display dimming, all via a simple I2C interface. The backpacks come with address-selection jumpers so you can connect up to four mini 8x8's or eight 7-segments (or a combination, such as four mini 8x8's and four 7-segments, etc) on a single I2C bus.

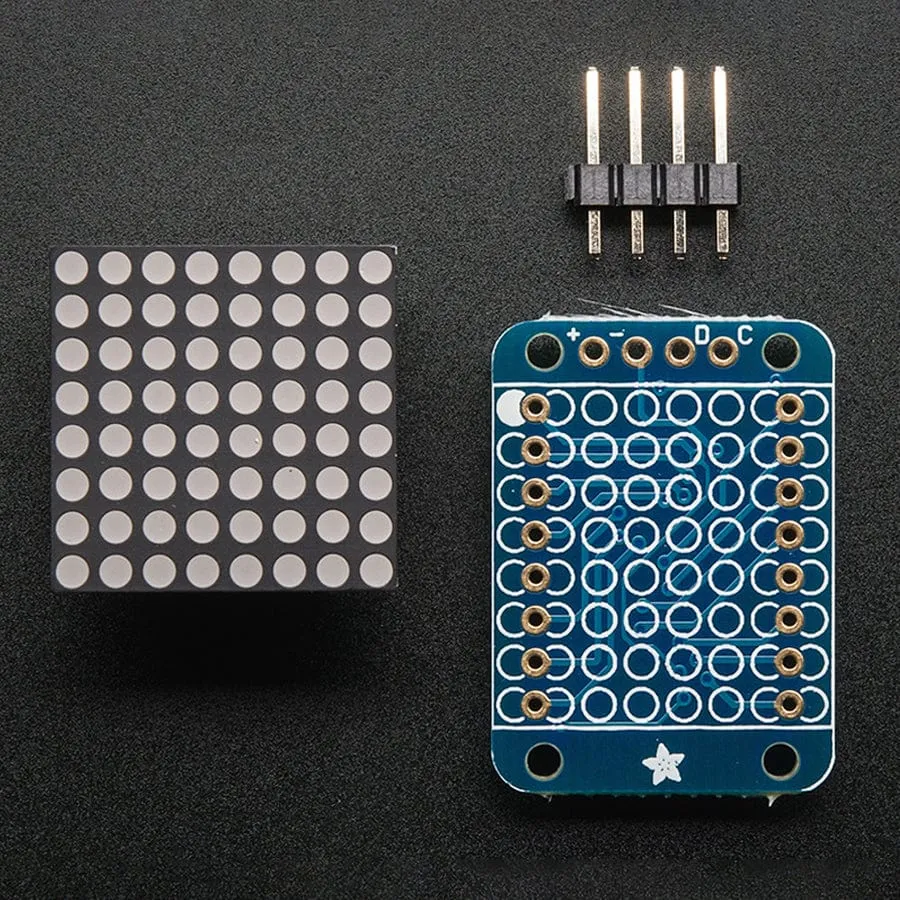

The product kit comes with:

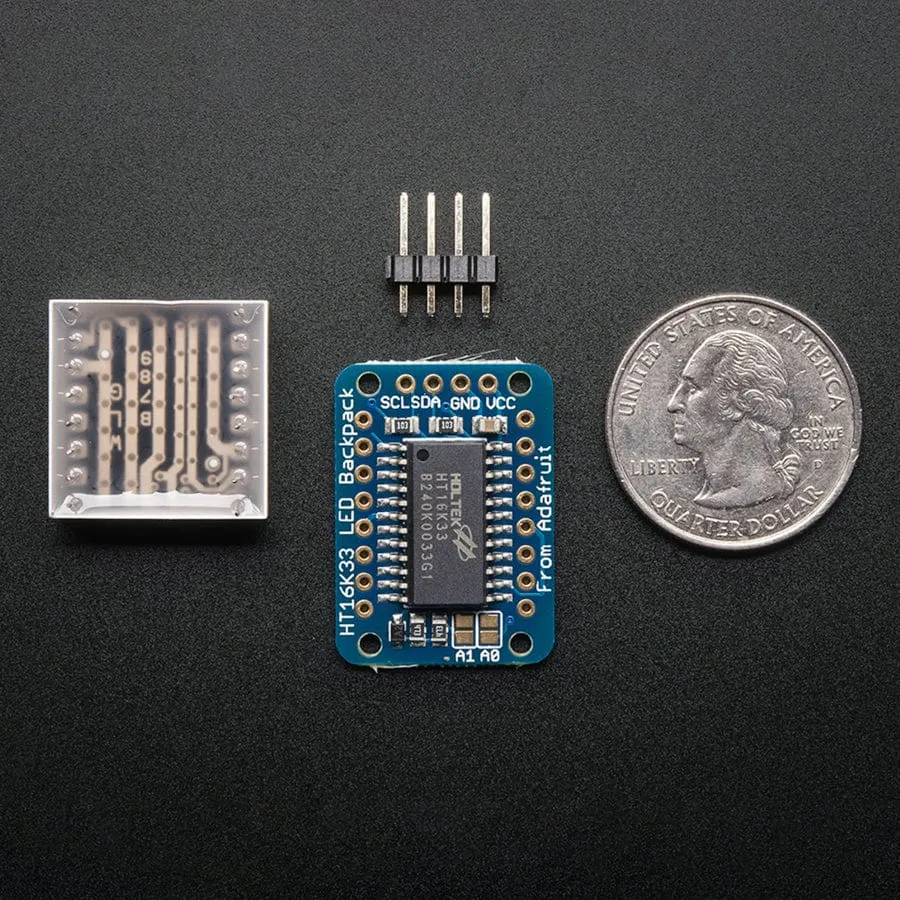

- A fully tested and assembled LED backpack
- Ultra-bright 8x8 pure green matrix
- 4-pin header
A bit of soldering is required to attach the matrix onto the backpack but it's very easy to do and only takes about 5 minutes.
Of course, in classic Adafruit fashion, we also have a showing you how to solder, wire and control the display. We even wrote a so you can get running in under half an hour, displaying images on the matrix or numbers on the 7-segment. If you've been eyeing matrix displays but hesitated because of the complexity, this is the solution you've been looking for!
This board/chip uses I2C 7-bit addresses between 0x70-0x73, selectable with jumpers
Specifications
Backpack Dimensions:
- 20mm x 28mm x 4mm
- Mounting Holes: 12mm x 22mm
